Trance X Advanced Elite E  3 Electric Mountain Bike (2023)

Trance X Advanced Elite E 3 Electric Mountain Bike (2023)

$ 63.00

$ 5052.72

Unavailable
Trance X Advanced Elite E  3 Electric Mountain Bike (2023)

Trance X Advanced Elite E 3 Electric Mountain Bike (2023)

$ 63.00

$ 5052.72

Color:
  • Brown
Size:
  • Small
  • Medium
  • Large
  • X-Large
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Get ready to conquer the trails like never before with the Trance X Advanced Elite E 3 Electric Mountain Bike! This lightweight, full-suspension E-MTB is packed with power, agility, and control, allowing you to accelerate up climbs, float through rock gardens, and experience the ride of your dreams. And with the new ultra-slim EnergyPak 400 battery, you get all the power you need without the added weight.

But that's not all! The Advanced cockpit control with RideControl Ergo 3 remote is sleekly designed to attach to the all-new composite Giant Contact SLR integrated handlebar, giving you customizable controls and an uncluttered cockpit. And the new SyncDrive Pro motor, co-developed with Yamaha, puts out a whopping 85Nm of torque while weighing just 2.7kg, resulting in quicker acceleration and improved climbing capabilities.

So what are you waiting for? Strap on your helmet, hop on the Trance X Advanced Elite E 3, and get ready for an electrifying ride!

Lighter weight

New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package thats cleanly integrated with the composite frameset.

Advanced cockpit control

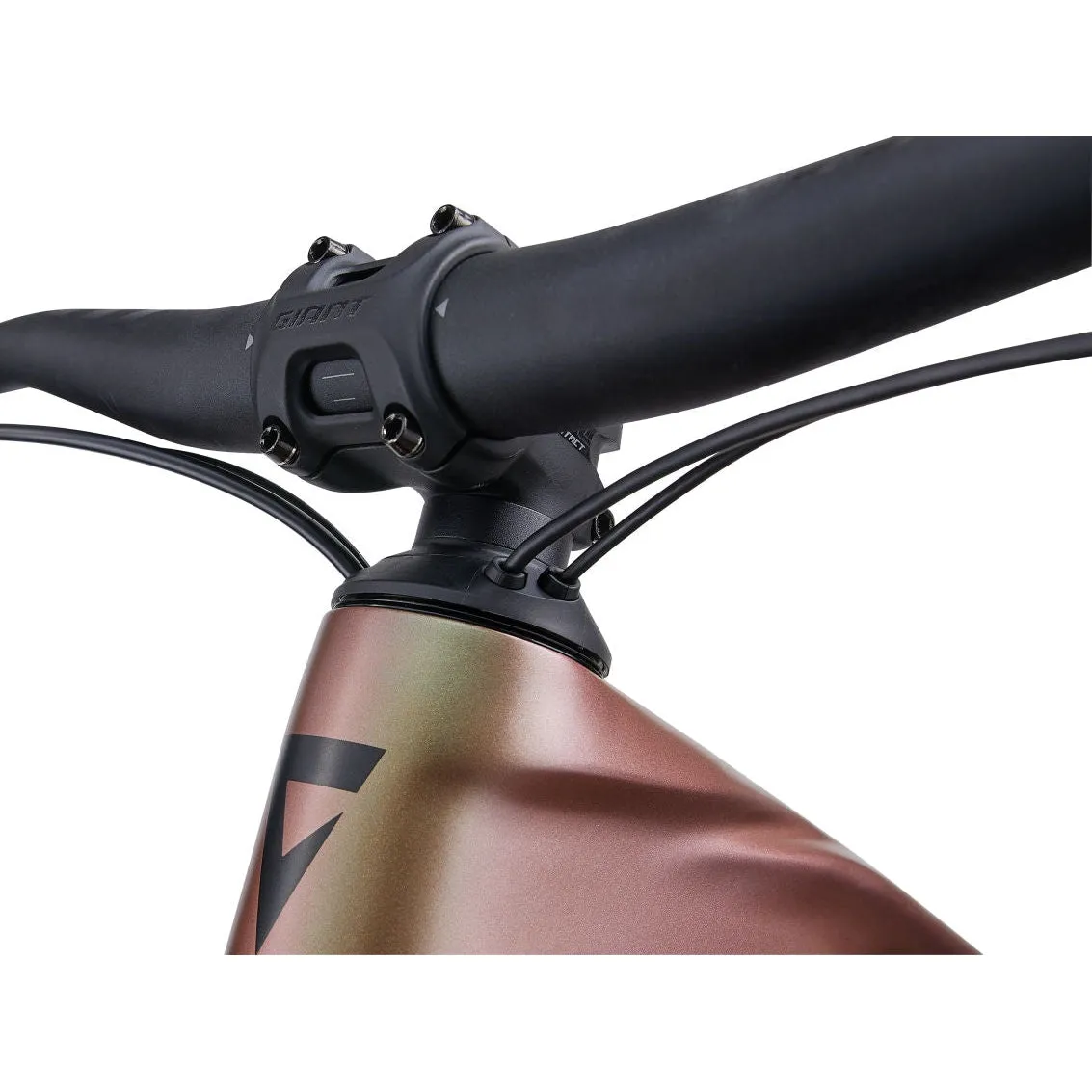

RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.

More Power

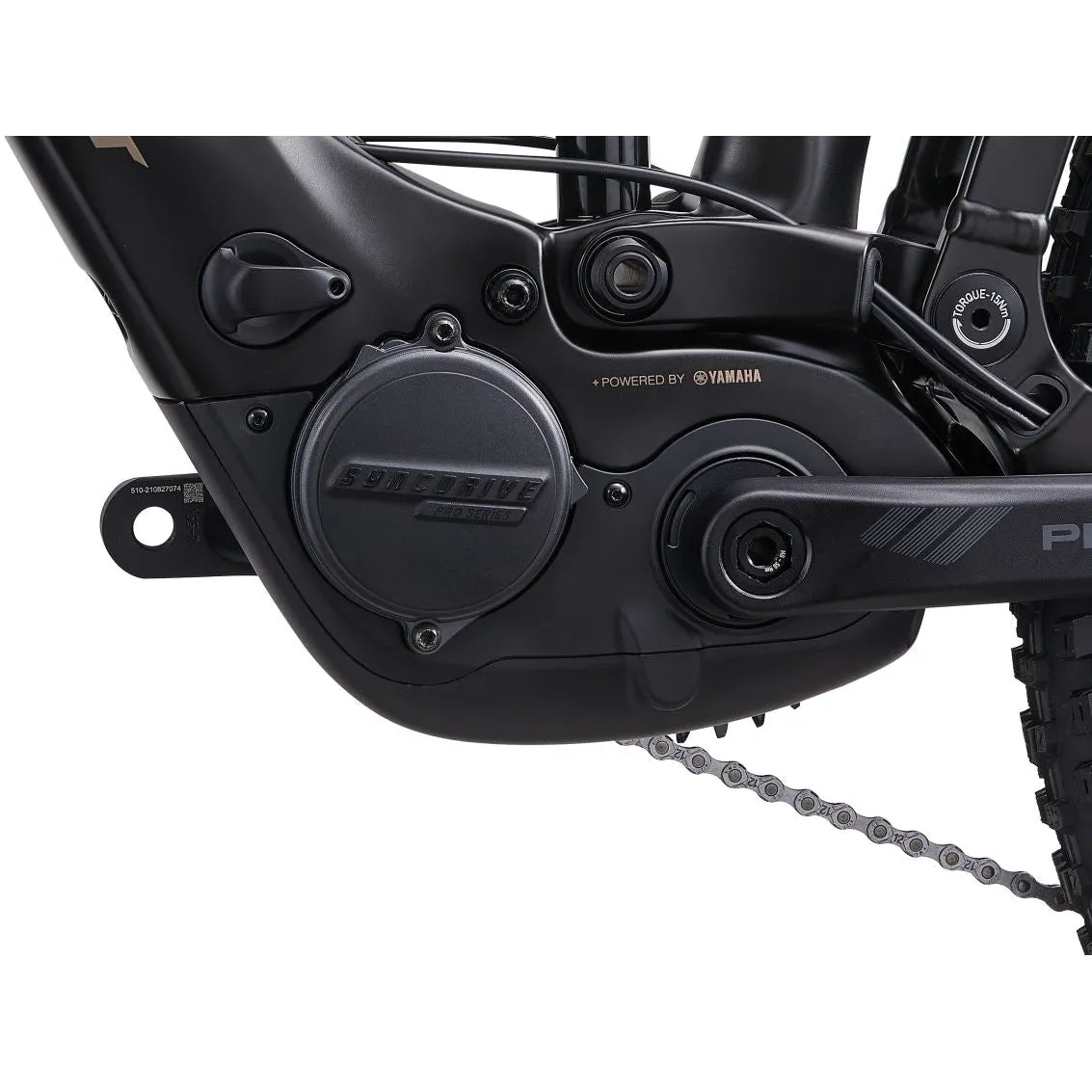

New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK 400 / SYNCDRIVE PRO

Range

  • Extreme:24 miles
  • Good:43 miles
  • Ideal:80 miles

Specifications

MotorSyncDrive Pro, 85Nm, powered by Yamaha
ControllerRideControl GO integrated in TT, RideControl Ergo 3
DisplayANT cycle computer compatible
BatteryEnergyPak Smart 400 EnergyPak Plus range extender compatible
SizesS, M, L, XL
ColorsMessier/Panther

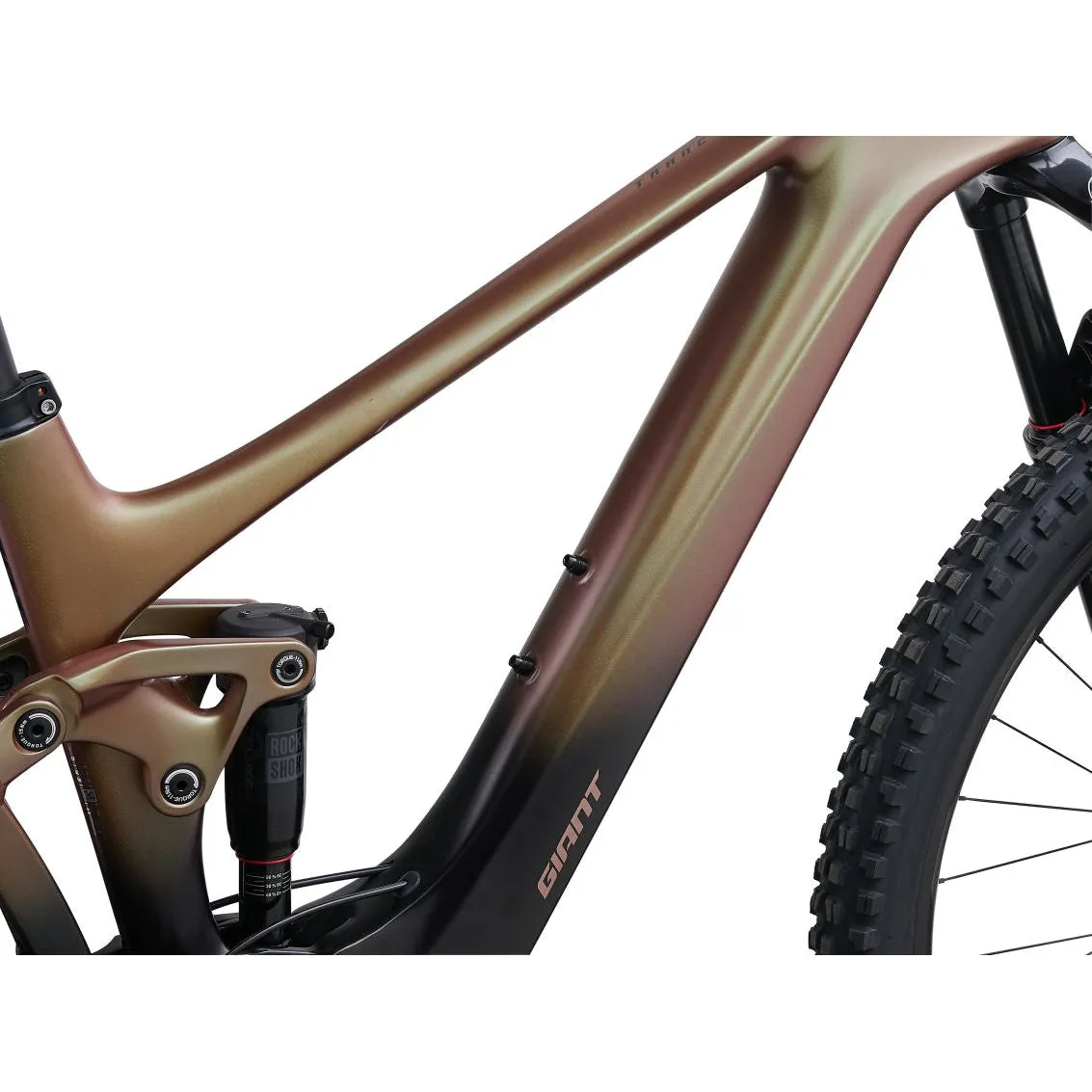

FrameAdvanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
ForkRockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized

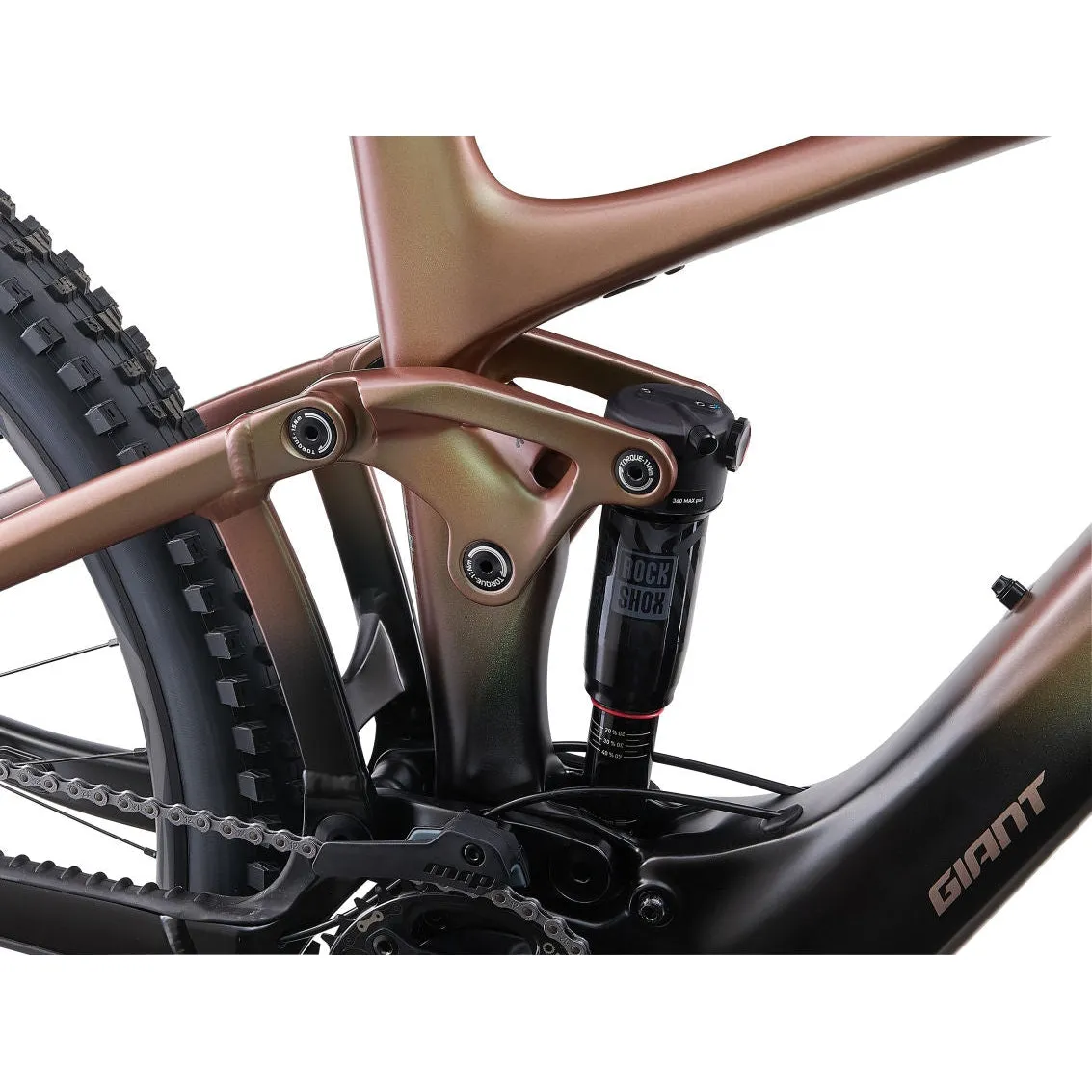

ShockRock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned
HandlebarGiant Contact SL 35 Trail, 35x780mm
GripsGiant Tactal Pro-E, single lock-on
StemGiant Contact SL 35
SeatpostGiant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
SaddleGiant Romero, Neutral
Pedals
ShiftersShimano Deore
Front DerailleurMRP HD2 co-moulded chain guide
Rear DerailleurShimano Deore 12-speed
BrakesShimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake LeversShimano Deore, I-spec EV
CassetteShimano CS-M6100-12, 10-51T, 12-speed
ChainKMC e.12 Turbo, EcoProteq, e-bike optimized
CranksetPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (S:160, M/L: 165, XL:170)
Bottom Bracketn/a
RimsGiant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
HubsShimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
SpokesSapim E-Lite [R] Race [F], e-bike optimized
TiresMaxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
ExtrasTubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
LightingOptional: - Giant Recon series e-bike lights available and direct connectable
WeightThe most accurate way to determine any bikes weight is to have your local weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Geometry

SMLXL
LOW|HIGH LOW|HIGH LOW|HIGH LOW|HIGH
ASEAT TUBE LENGTH(inch) 15.716.717.718.7
BSEAT TUBE ANGLE77.2|78.0 76.0|76.7 76.0|76.7 76.0|76.7
CTOP TUBE LENGTH(inch) 22.7|22.6 23.9|23.8 25|25 26.2|26.1
DHEAD TUBE LENGTH(inch) 3.73.94.55.1
EHEAD TUBE ANGLE65.7|66.5 65.8|66.5 65.8|66.5 65.8|66.5
FFORK RAKE(inch) 1.71.71.71.7
GTRAIL(inch) 4.4|4.3 4.4|4.3 4.4|4.3 4.4|4.3
HWHEELBASE(inch) 47|47 47.8|47.7 49|49 50.2|50.2
ICHAIN STAY LENGTH(inch) 17.6|17.6 17.6|17.6 17.6|17.6 17.6|17.6
JBOTTOM BRACKET DROP(inch) 0.40.40.40.4
KSTACK(inch) 23.9|23.7 24.1|23.8 24.6|24.4 25.2|24.9
LREACH(inch) 17.3|17.6 18|18.2 18.9|19.2 19.9|20.2
MSTAND OVER HEIGHT(inch) 28.6|28.9 28.9|29.2 28.8|29.2 29.2|29.5
NHANDLEBAR WIDTH(inch) 30.730.730.730.7
OSTEM LENGTH(inch) 1.61.622
PCRANK LENGTH(inch) 6.36.56.56.7
QWHEEL SIZE R27.5" / F29"R27.5" / F29"R27.5" / F29"R27.5" / F29"
