FRAMESET
FRAME
ROGUE 27.5" LADIES SPECIFIC 6061 Aluminium FRAME
MODERN GEOMETRY / MACHINE FORMED TUBING / STANDARD 135mm QR 9mm REAR AXLE / DISC ONLY

SIZE
XS-S-M

SUSPENSION
FORK
ALLOY LEG 27.5" MLO 100MM
27.5 / 100mm / COIL SPRING / 9mm QR / MECHANICAL LOCKOUT

FORK FENDER
N/A

REAR SHOCK
N/A
N/A

DRIVETRAIN

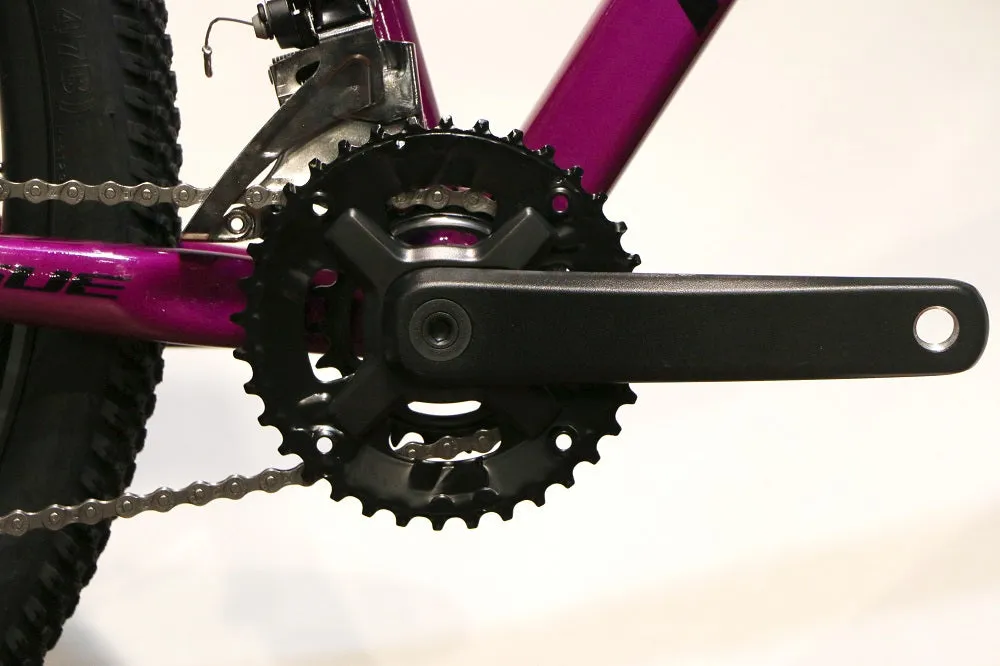

CHAINWHEEL
PROWHEEL TM-CY10 42-34T
PROWHEEL / 32T / 2 X 8 SPEED / ALLOY CRANK / STEEL CHAINRING / NO GUARD / S 170mm CRANKARM / M L XL 175mm CRANKARM

DERAILLEUR FRONT
MICROSHIFT 2 X 8

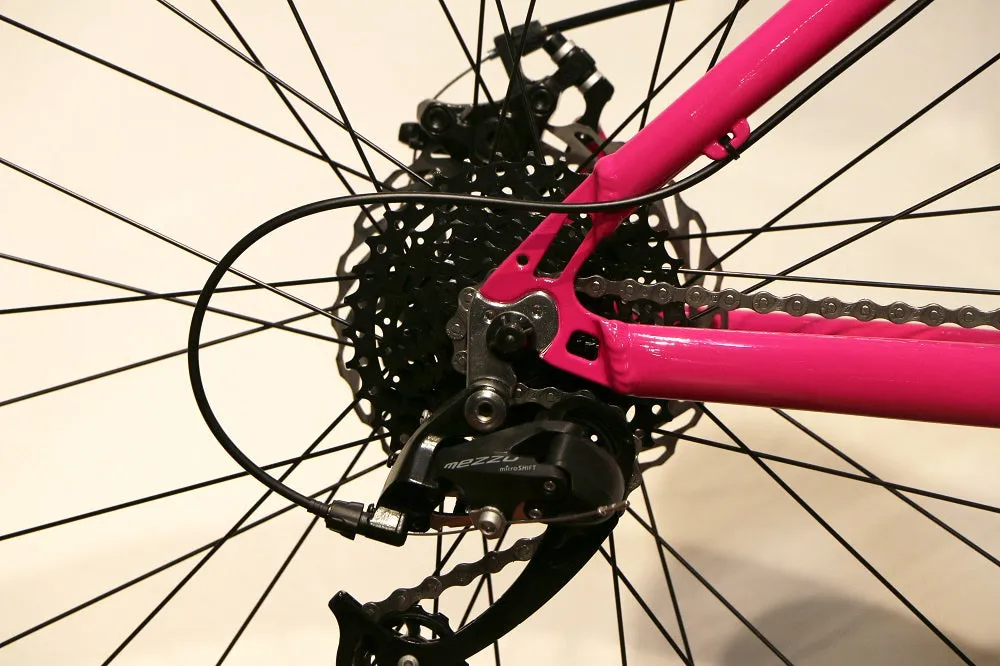

DERAILLEUR REAR
MICROSHIFT MEZZO RD-M36L 2 X 8

SHIFTER LEFT
TS39-28 TRIGGER 2 X 8

SHIFTER RIGHT
TS39-28 TRIGGER 2 X 8

CHAIN
KMC Z51

FREEWHEEL
MICROSHIFT CS-H081 11-34T

BB SET
CH-52, One Piece, BC1.3724T, One piece

SPEED
2 x 8 SPEED

BRAKES
BRAKE LEVER
TEKTRO

BRAKE FRONT
JAK MECHANICAL DB 160mm ROTOR

BRAKE REAR
JAK MECHANICAL DB 160mm ROTOR

BRAKE CABLE
BLACK

WHEELS
RIMS
TR COMP RIM 28H
TR MD16 AL6061 36H 27.5 MATT BLACK

HUB FRONT
ALLOY Q/R DISC BLACK
DC-1420, 14Gx28H, Q/R-M9x100x108mm

HUB REAR
ALLOY Q/R DISC BLACK
14G DC-1425, 8/9/10s, 14Gx28H, Q/R-M10x135x145mm

SPOKES
STEEL, ED BLACK 14Gx290mm / 14Gx288mm

TUBE
27.5 A/V

TYRES
CHAOYANG VICTORY 27.5" X 2.1
CY H-5129 29X2.1 27TPI WIRE BEAD BLACK WALL

COMPONENTS
GRIP
TR ERGO GRIP

HANDLEBAR
TR COMP FLAT H/BAR 720mm
TR HB-M003 FLAT 720mm

HANDLEBAR STEM
TR COMP H/BAR STEM
TR SM-001 ALLOY OVERSIZED XS/S = 60mm / M = 80mm

HEADSET
FP-871, Ball retainer, Semi, 28.64452mm

SPACER
10mm X 2 PCS

SADDLE
CL-6402

SEAT POST
TR COMP 31.6mm
TR SP-003D RIGID ALLOY 31.6mm 350mm

SEAT CLAMP
PROMAX 327 Q

PEDAL
PP BODY/STEEL CAGE

WEIGHT
BIKE WEIGHT
14.3 kgMezzu Microshift
