FRAME

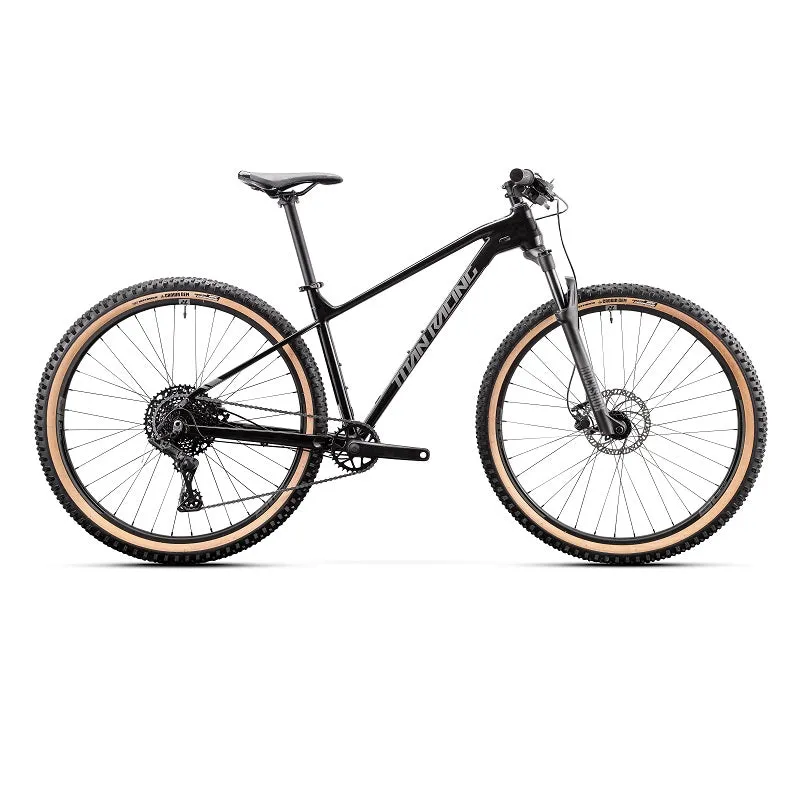

DRONE 29" X6 Aluminium FRAME
MODERN PROGRESSIVE GEOMETRY / HYDROFROMED TUBING / INTERNAL CABLE ROUTING / BOOST 148MM THRU AXLE / BSA 73MM BB

FORK
SUNTOUR RAIDON32-Boost100mm
29 / 100mm / LOR DS 15QLC32-110 29

CHAINWHEEL
PROWHEEL A10Y-NW 32T
PROWHEEL BSA 73mm / 32T / 10 SPEED / ALLOY CRANK / STEEL CHAINRING / 52mm CHAINLINE BOOST 148 / NO GUARD / S 170mm CRANKARM / M L XL 175mm CRANKARM

DERAILLEUR REAR
MICROSHIFT ADVENT X RD-M6205GM

SHIFTER RIGHT
MICROSHIFT ADVENT X SL-M9605-R

CHAIN
KMC 10

FREEWHEEL
MICROSHIFT CS-G104 11-48T

BB SET
CH-52

SPEED
1 X 10 SPEED

BRAKE LEVER
TEKTRO

BRAKE FRONT
TEKTRO M275 WITH 180MM ROTOR

BRAKE REAR
TEKTRO M275 WITH 160MM ROTOR

BRAKE CABLE
BLACK

RIMS
PRIME SL 27 XC TL RIM 32H
PRIME SL 27 / 29er / MATT BLACK / DOUBLE WALL W/EYELETS / 32H / TL-READY / F/V

HUB FRONT
FORMULA 511 32H CL 15 X 110MM
DC-511, THRU, 14Gx32H-M15x110, Boost

HUB REAR
FORMULA 3248 32H CL 12 X 148MM
DC-3248, 8/9/10s, THRU, 14Gx32H-M12x148, Boost

SPOKES
Stainless BLACK 14Gx290mm / 14Gx288mm

TUBE
29 F/V

TYRES
VEE CROWN GEM 29" X 2.3
TRAIL XC / MPC COMPOUND / 27TPI WIRE BEAD SKINWALL (NATURAL WALL)

GRIP
TR SLIDE LOCK MTB GRIP

HANDLEBAR
TR COMP FLAT H/BAR 750mm
TR HB-M003 FLAT 760MM

HANDLEBAR STEM
TR COMP H/BAR STEM
TR SM-001 XS/S = 60MM / M/L = 80MM / XL = 100MM

HEADSET
FP-871, Ball Bearing, 28.64456mm39.8mm

SPACER
10mm X 2 PCS

SADDLE
PROLOGO NAGO X12 RS STN NYLON INJ MICROFIBER P3

SEAT POST
TR PRO ALLOY SEAT POST 31.6mm
PROMAX SP-2019 AL6061 31.6 S M L 400mm / XL 450mm

SEAT CLAMP
PROMAX 327 Q
