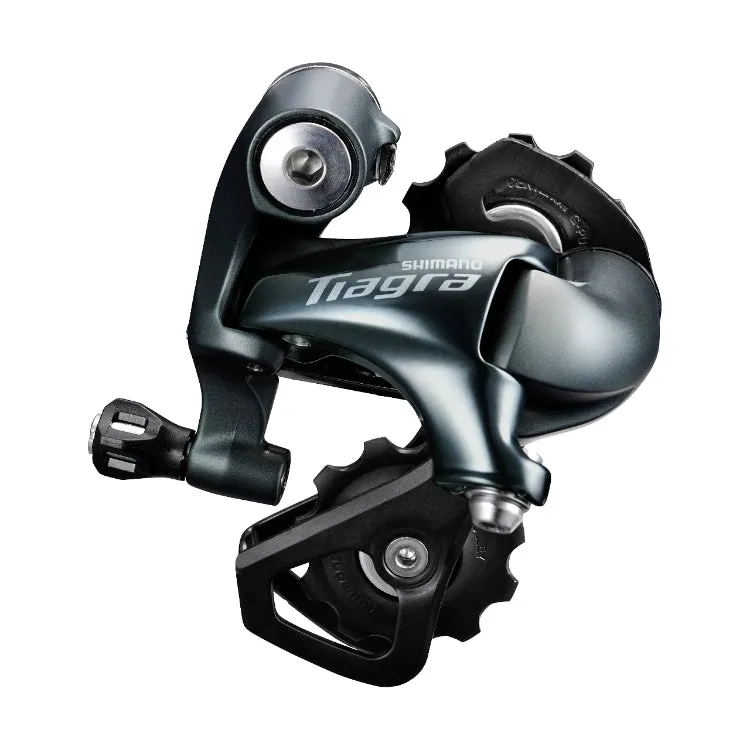

SHIMANO TIAGRA - Rear Derailleur - Short Cage - 10-speed

The SHIMANO TIAGRA rear derailleur shifts with a consistently smooth, light action. Designed for 10-speed road drivetrains, it is offered in short and medium cage options.

PRODUCT SPECIFICATIONS
MODEL NO: RD-4700-SS

SERIES: TIAGRA 4700 Series

Color: Series color

Compatible chain: HG-X 10-speed

Total capacity: 33T

Cable adjuster:

Mount Direct attachment (Conventional):

Fluoric coated link bushings: 2

Low sprocket Max.: 28T

Low sprocket Min.: 25T

Max. front difference: 16T

Pulley Sunken type pulley bolt:

Pulley Teeth: 11T

Pulley cage: SS

Top-Normal spring type Double servo:

Top sprocket Max.: 14T

Top sprocket Min.: 11T

Rear speeds: 10
