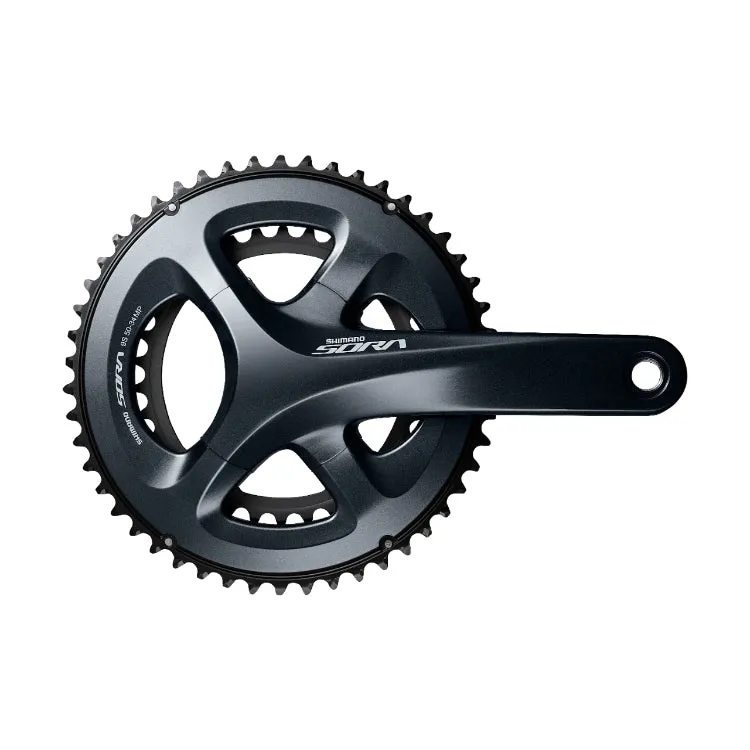

SHIMANO SORA - Road Crankset 2x9-speed

The SHIMANO SORA 2x9 speed road crank uses a high-end 4-arm design and compact 50-34T chainrings and is available in 165, 170, and 175mm crank arm lengths.

PRODUCT SPECIFICATIONS

MODEL NO: FC-R3000

SERIES: SORA R3000 Series

Color: Series color

Threaded bottom bracket shell width (mm) 70:

2-PIECE CRANKSET:

Chainring combination: 50-34T

Compatible bottom bracket type Outboard:

Crank fixing screw included:

Crank arm length (mm) 165:

Crank arm length (mm) 170:

Crank arm length (mm) 175:

Spider/Gear arms: 4

Optional chain guard Without chain/bash guard:

Recommended bottom bracket Press-fit: BB-RS500-PB

Recommended bottom bracket Threaded (normal): BB-RS501

Threaded bottom bracket shell width (mm) 68:

Q-factor (mm): 150

Chain line (mm): 43.5

Compatible chain: HG 9-speed

P.C.D. left / right (mm): 110

P.C.D. (mm): 110

Rear speeds: 9
