FEATURES

Tubeless construction for more aggressive riding
30C rim width for more tire rigidity
24 J-bend spokes
Rim diameter: 27.5/29
O.L.D.: 110 mm

PRODUCT SPECIFICATIONS

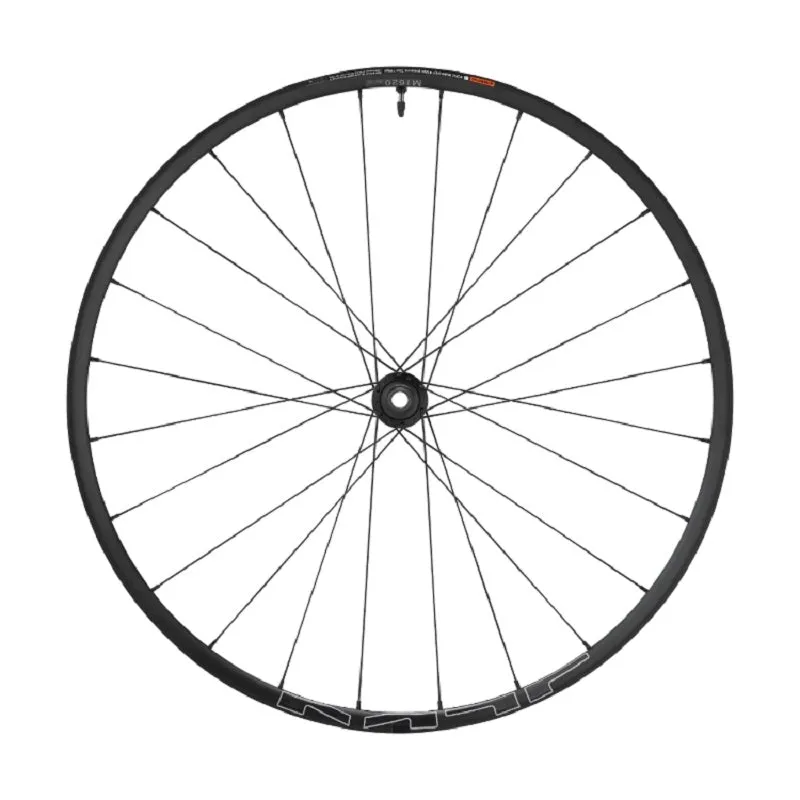

MODEL NO: WH-MT620-TL-F15-B-29
SERIES: SHIMANO
Color: Black
Average weight: 990
Spokes_J-bend:
Brake type: CENTER LOCK Disc
Axle fixing method: 15 mm E-THRU
Thru Axle (Length x Inner diameter ; mm)_110 x 15:
O.L.D. (mm): 110
Front/Rear: Front
Reflector_AS: CATEYE RR-550-WUA SW
Reflector_DIN: CATEYE RR317-WUA SW
Reflector_JIS/CPSC: CATEYE RR-550-WUW SW
Rim_Height (mm): 19.8
Rim_OFFSET RIM:
Rim_Requires rim tape: X (30 - 584)
Rim_Rim joint: Welding
Seal_Hub: Labyrinth & Contact
Spokes_Number: 24
Tire_Recommended size: 29 x 2.25 - 2.60
Tire_Type: Tubeless
Wheel Size: 622 x 30C (29 inch)
Color_1 Hub shell: Black
Model name: WH-MT620-TL
Rim_External width (mm): 34.7
Rim_Internal width (mm): 30
Specification: F15-B-29Wheel Size: 559x19C (26)Specification: R
