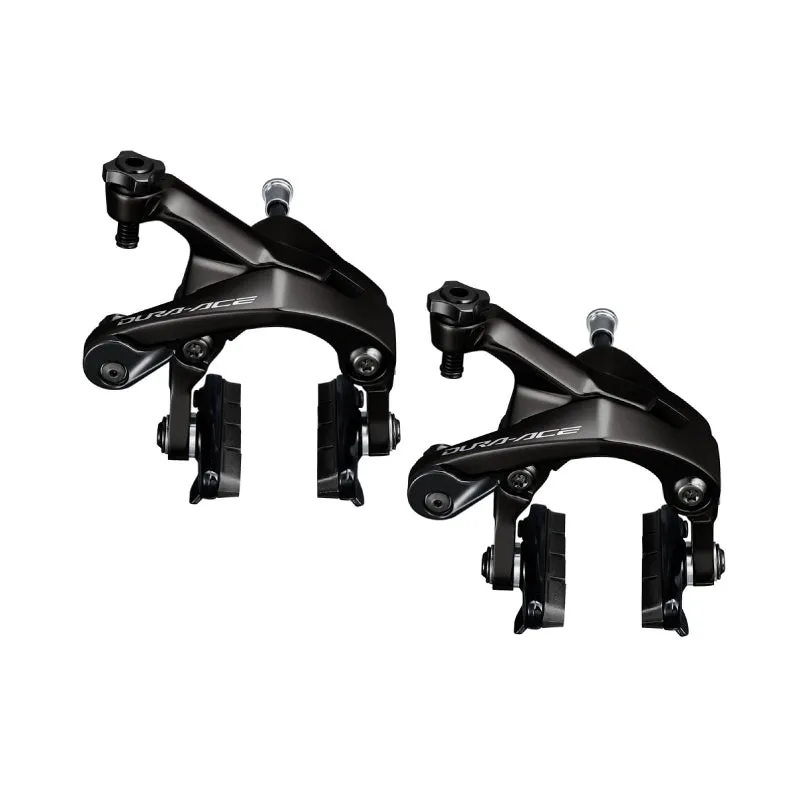

With SHIMANO's SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9200 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.
FEATURES
Exceptional balance of rigidity, weight and stopping power Maximum tire size: 28C Lightweight magnesium brake shoe holder
SPECIFICATIONS
MODEL NO BR-R9200 SERIES DURA-ACE R9200 Series Color Series color Average weight 327 ( /pair) Brake type SLR-EV Dual Pivot Reach (mm) 51 Assembly pivot nut (mm)_Front (mm)_10.5 Assembly pivot nut (mm)_Front (mm)_12.5 Assembly pivot nut (mm)_Front (mm)_18.0 Assembly pivot nut (mm)_Front (mm)_27.0 Assembly pivot nut (mm)_Front (mm)_32.0 Assembly pivot nut (mm)_Rear (mm)_10.5 Shoe angle adjusting Maximum tire size 28C Rim width (mm) 20.8 - 28 mm Titanium cable fixing bolt Titanium pivot bolt Cartridge shoe holder Brake shoe_Optional choice R55C4 Carbon R55C4-A Carbon R55CT4 Brake shoe_Standard R55C4 Compatibility SLR-EV Quick release lever Tire guide bumpers
