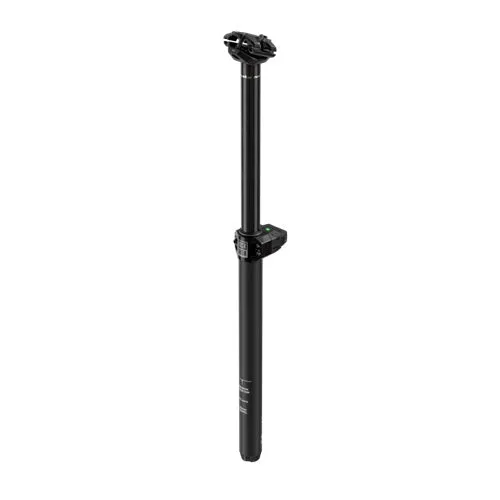

Reverb AXS completes the AXS ecosystem by giving the rider customizable controls, easy install, and a shared battery, charger, and controller. Built for GX, X0, and XX riders, Reverb AXS ensures smooth control and reliability for every rider running a 100mm up to a 250mm dropper post, all with improved battery clearance.

Discover your travel

Finding the perfect dropper post length for your bike has never been easier. With just two quick measurements, the Reverb AXS Length Calculator does the work for you. Try it out.

Features:

NEW air-over-air design that is more robust and durable.
ActiveRide provides a compliant platform for technical E-MTB climbs when not in fully extended rigid position
Compatible with all saddle rail types (7x7, 7x9 and 7x10)
Specifications:

Post diameter
30.9mm, 31.6mm, 34.9mm

Travel
100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm

Post length
348.2mm, 352.8mm, 398.2mm, 402.8mm, 448.2mm, 452.8mm, 498.2mm, 502.8mm, 548.2mm, 552.8mm, 598.2mm, 602.8mm, 648.2mm, 652.8mm

Remote
AXS Controller Sold Separately

Saddle Rail Compatibility
Round/Oval (7x9 & 7x10)

E-Bike Approved

Minimum Frame Insertion
110mm, 120mm, 160mm, 80mm

Maximum Frame Insertion
185.7mm, 188.6mm, 210.7mm, 213.6mm, 235.7mm, 238.6mm, 260.7mm, 263.6mm, 285.7mm, 288.6mm, 310.7mm, 313.6mm, 335.7mm, 338.6mm

Minimum Exposed Height
162.5mm, 164.2mm, 187.5mm, 189.2mm, 212.5mm, 214.2mm, 237.5mm, 239.2mm, 262.5mm, 264.2mm, 287.5mm, 289.2mm, 312.5mm, 314.2mm

Maximum Exposed Height
268.2mm, 272.8mm, 318.2mm, 322.8mm, 368.2mm, 372.8mm, 418.2mm, 422.8mm, 438.2mm, 442.8mm, 478.2mm, 482.8mm, 488.2mm, 492.8mm

Weight (g)
712

Weight Based On
200mm 31.6 W/O battery - Battery 25g
