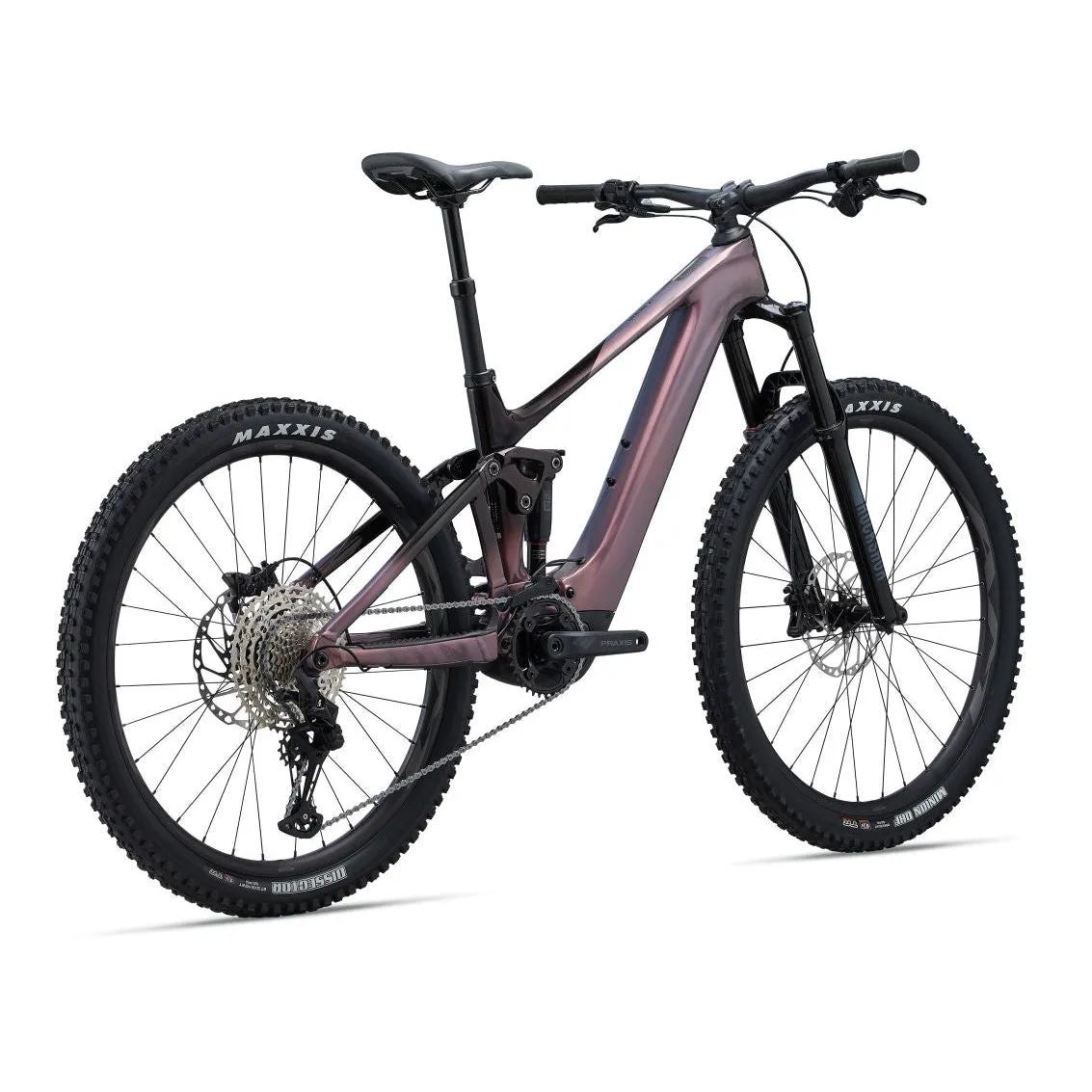

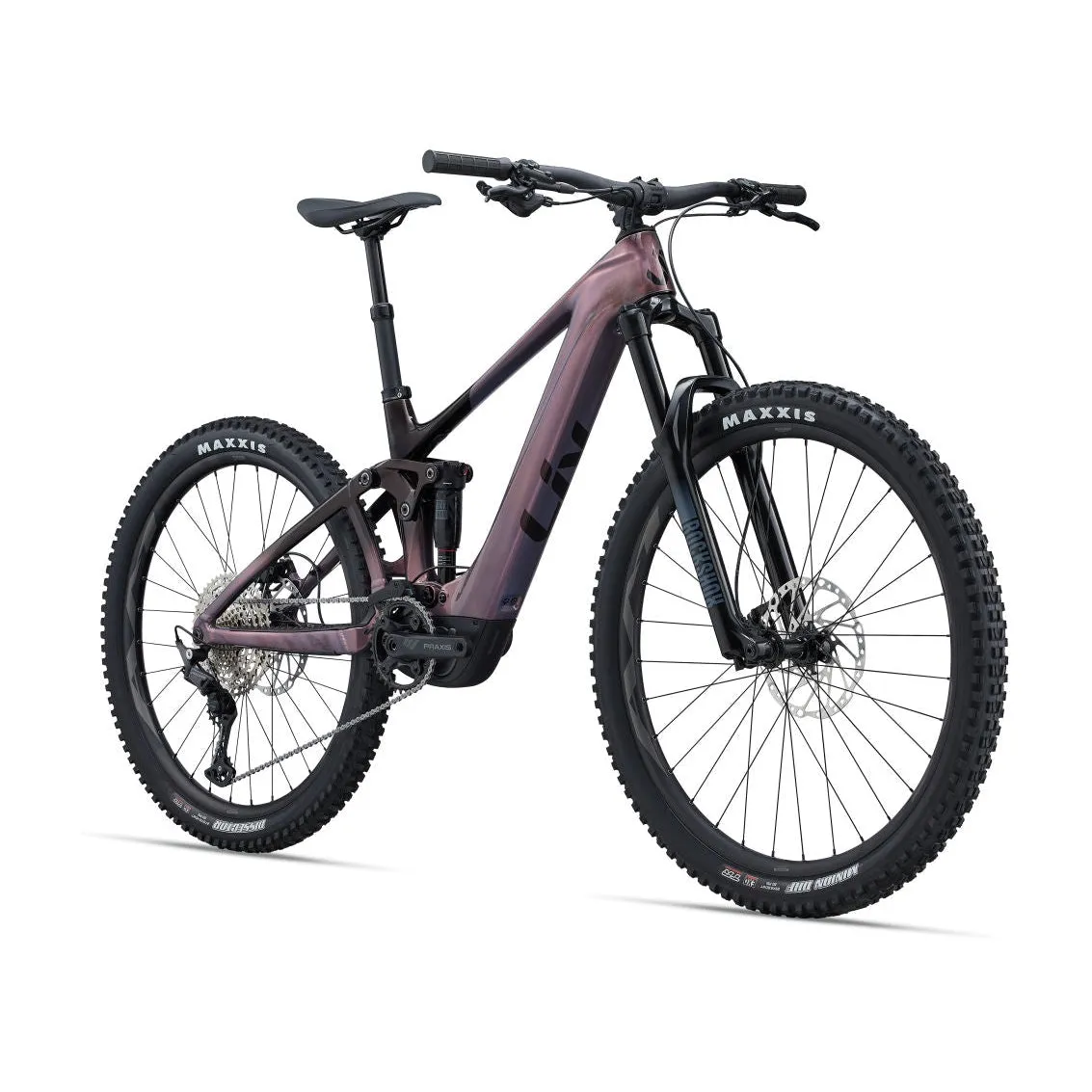

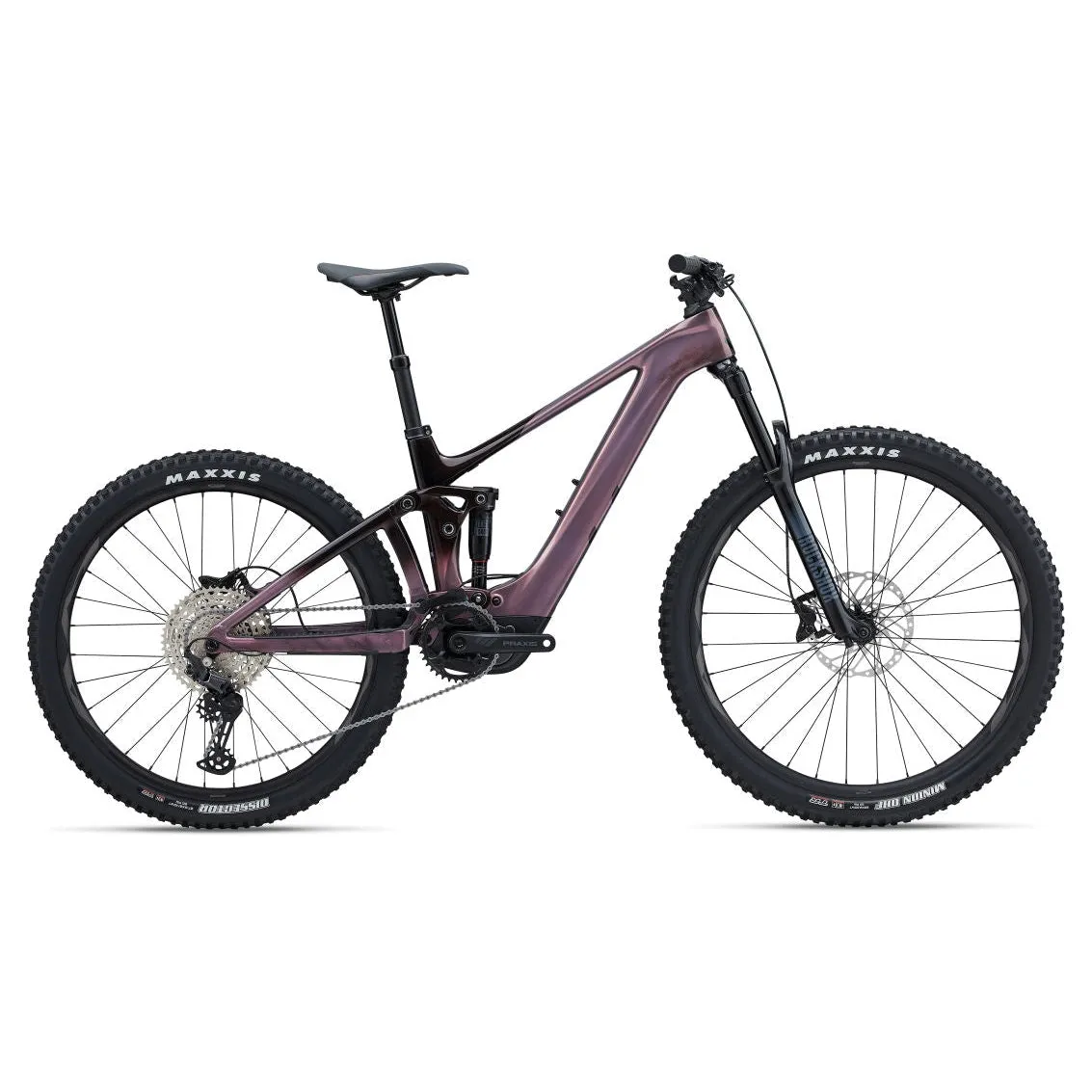

Looking for the ultimate electric mountain bike that's as light as a feather but as powerful as a locomotive? Look no further than the Intrigue X Advanced E Elite 3 Electric Mountain Bike! With its full suspension, short chainstay, and 140mm (rear)/150mm (front) travel, this baby is engineered for a super responsive ride that'll make you feel like a pro as you shred technical terrain with ease.
And with 85Nm of torque delivered by the SyncDrive Pro 2 motor, you'll be accelerating up climbs and cornering at top speed like a boss. But don't let the power fool you - this bike is also incredibly smooth and efficient, thanks to its ultra-slim, 400Wh battery hidden in the down tube. And let's not forget about the sleek design, with integrated controls, internal cable routing, and a modern look that screams high-end.
So get ready to experience next-level performance and unforgettable fun on the Intrigue X Advanced E Elite 3 - the ultimate electric mountain bike for the discerning adventurer!
Lightweight and nimble

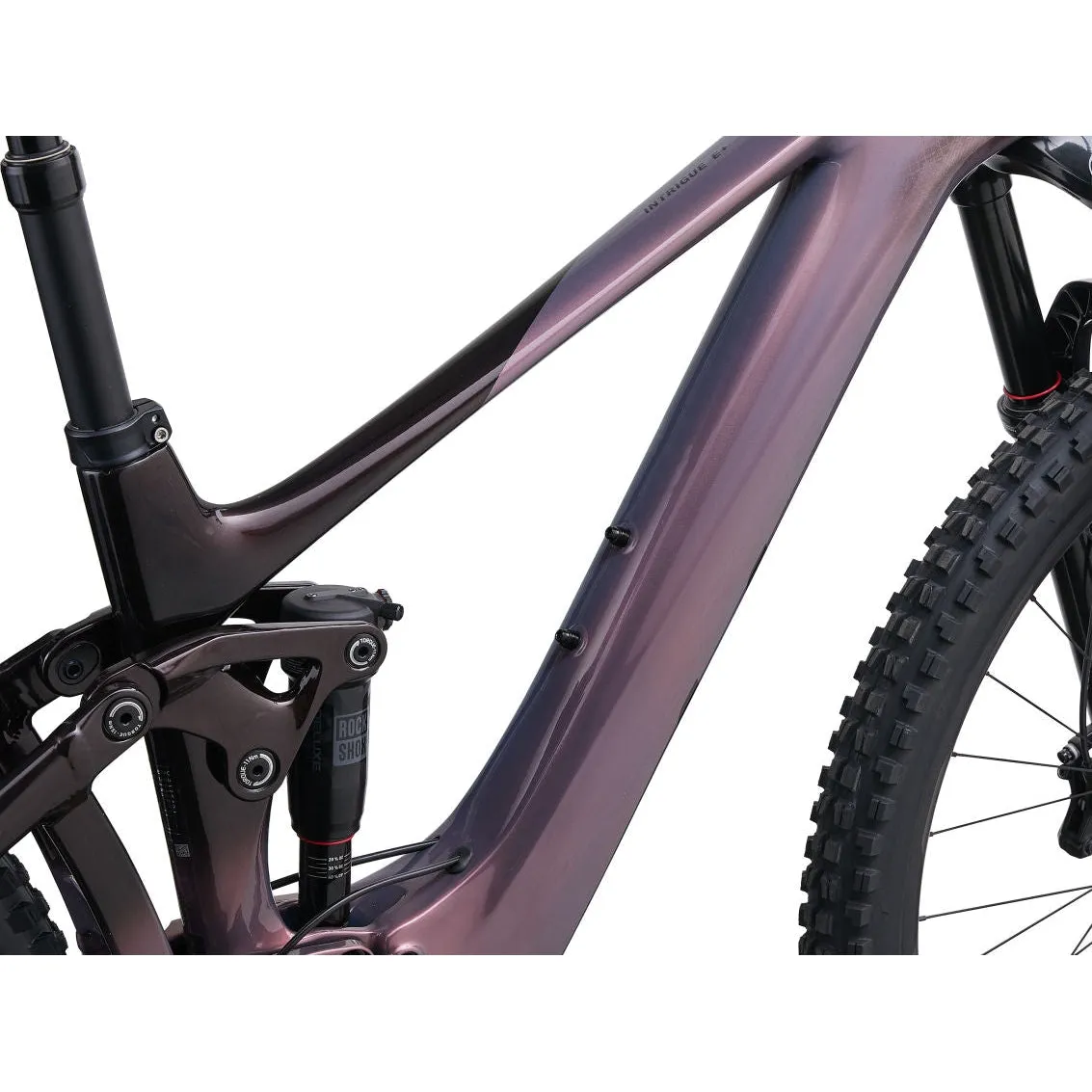

This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth

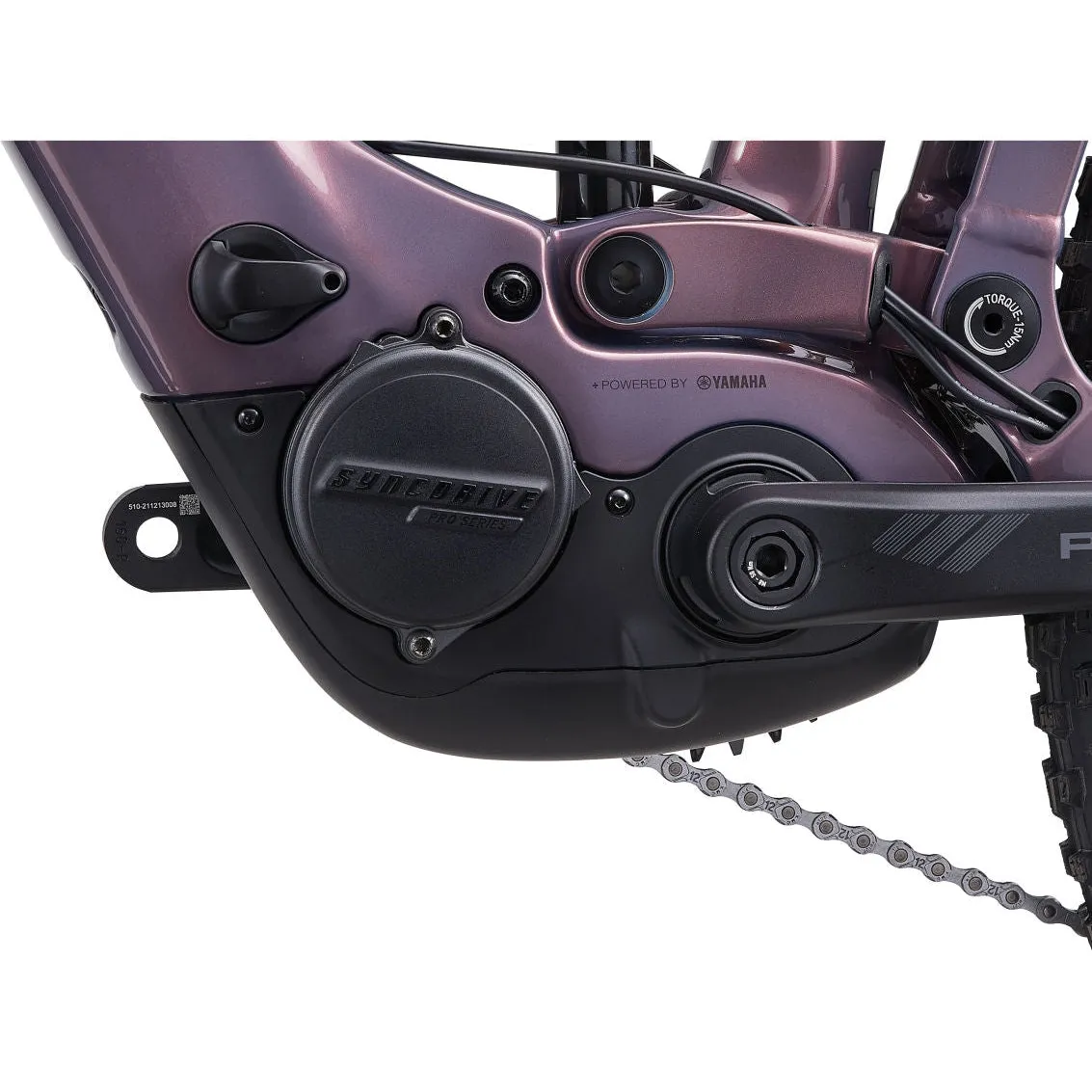

A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek design

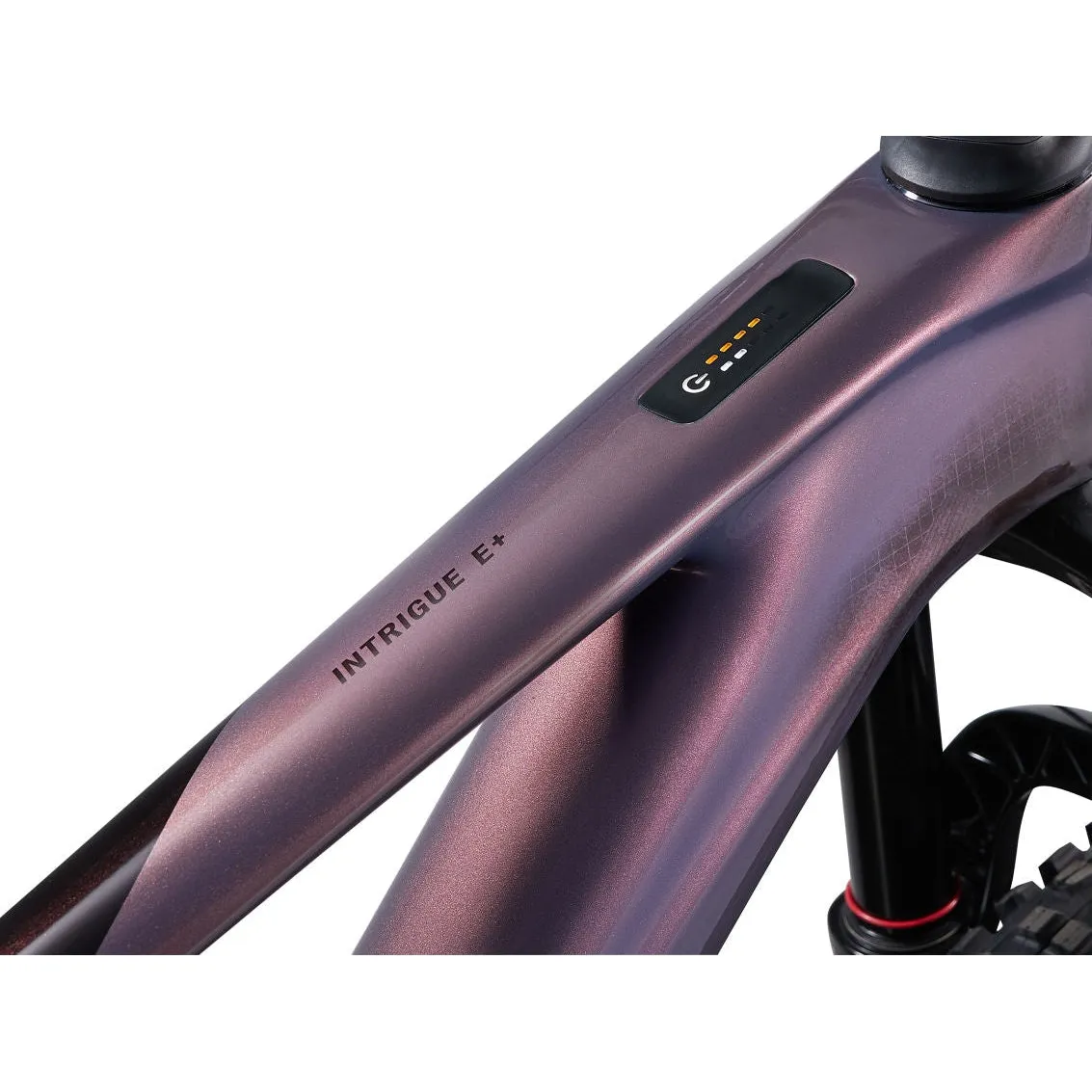

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 400 / SYNCDRIVE PRO
Range
- Extreme: 21 miles
- Good: 43 miles
- Ideal: 80 miles
Specifications
Sizes
Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
Controller | RideControl Ergo 3, RideControl GO integrated in T/T |
Display | ANT Wireless display compatible |
Battery | EnergyPak Smart 400EnergyPak Plus range extender compatible |
Sizes | XS, S, M, L |
Colors | Mirage/Cordovan |

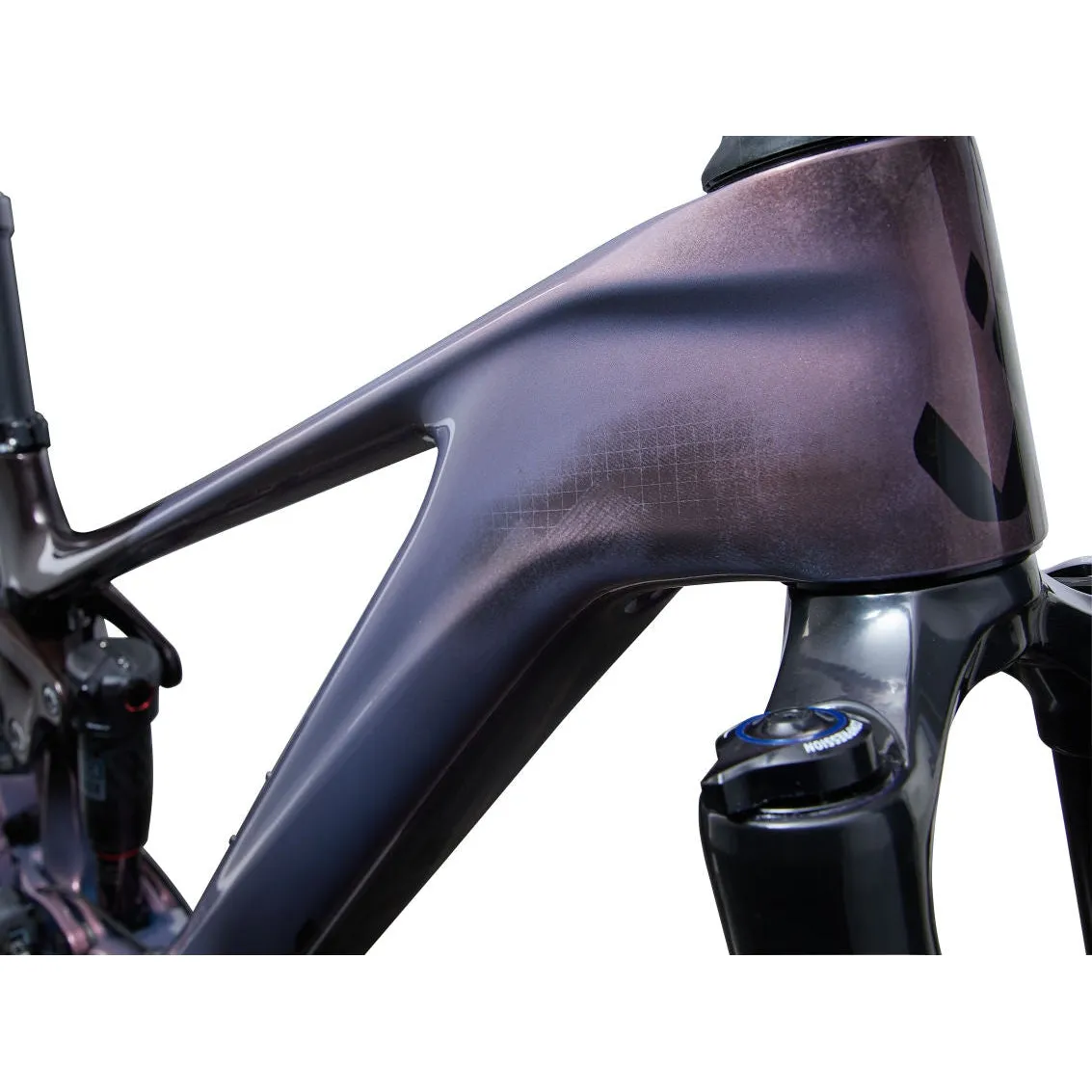

Frame | Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender CompatibleMX (front 29", rear 27.5") |
Fork | RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized |

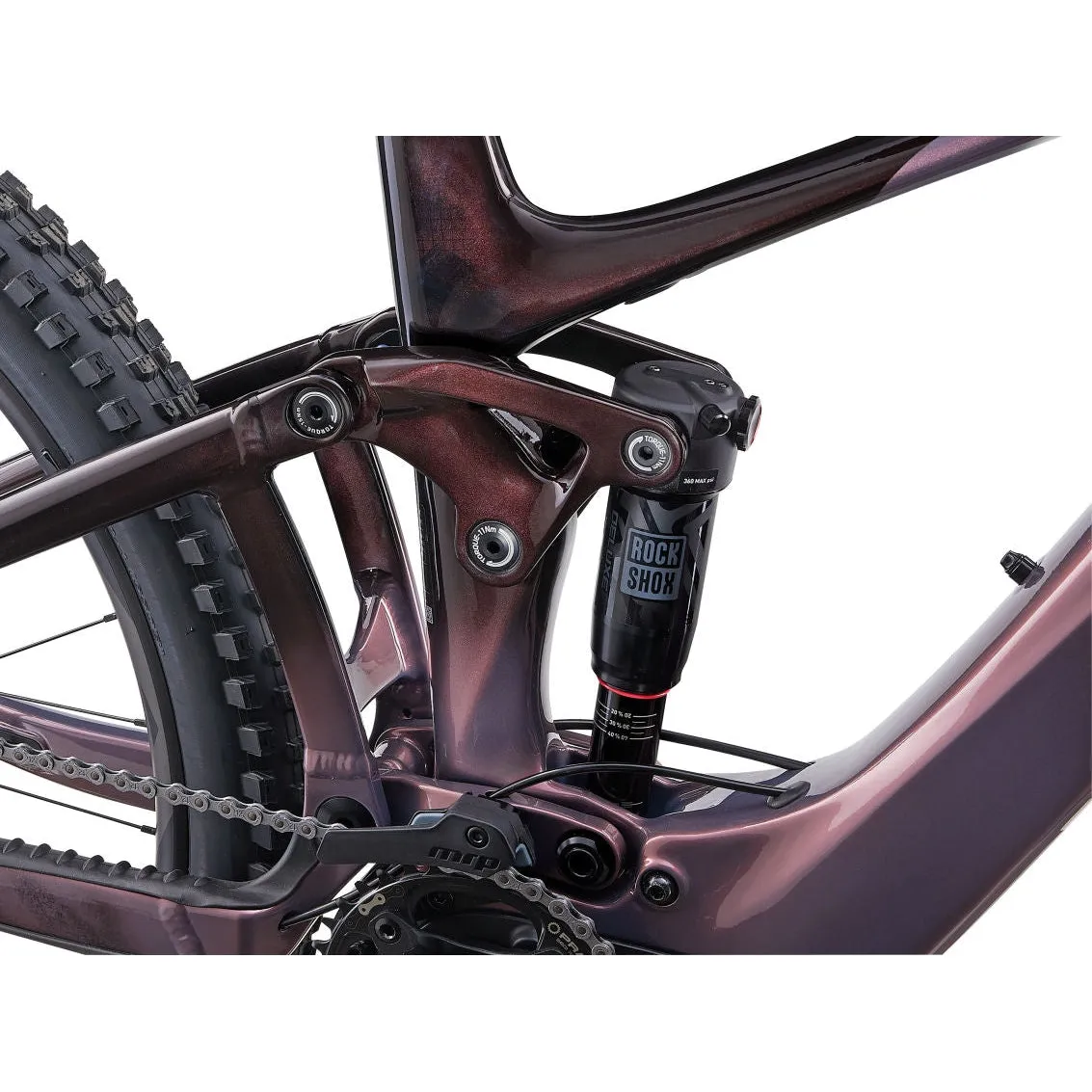

Shock | Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned |

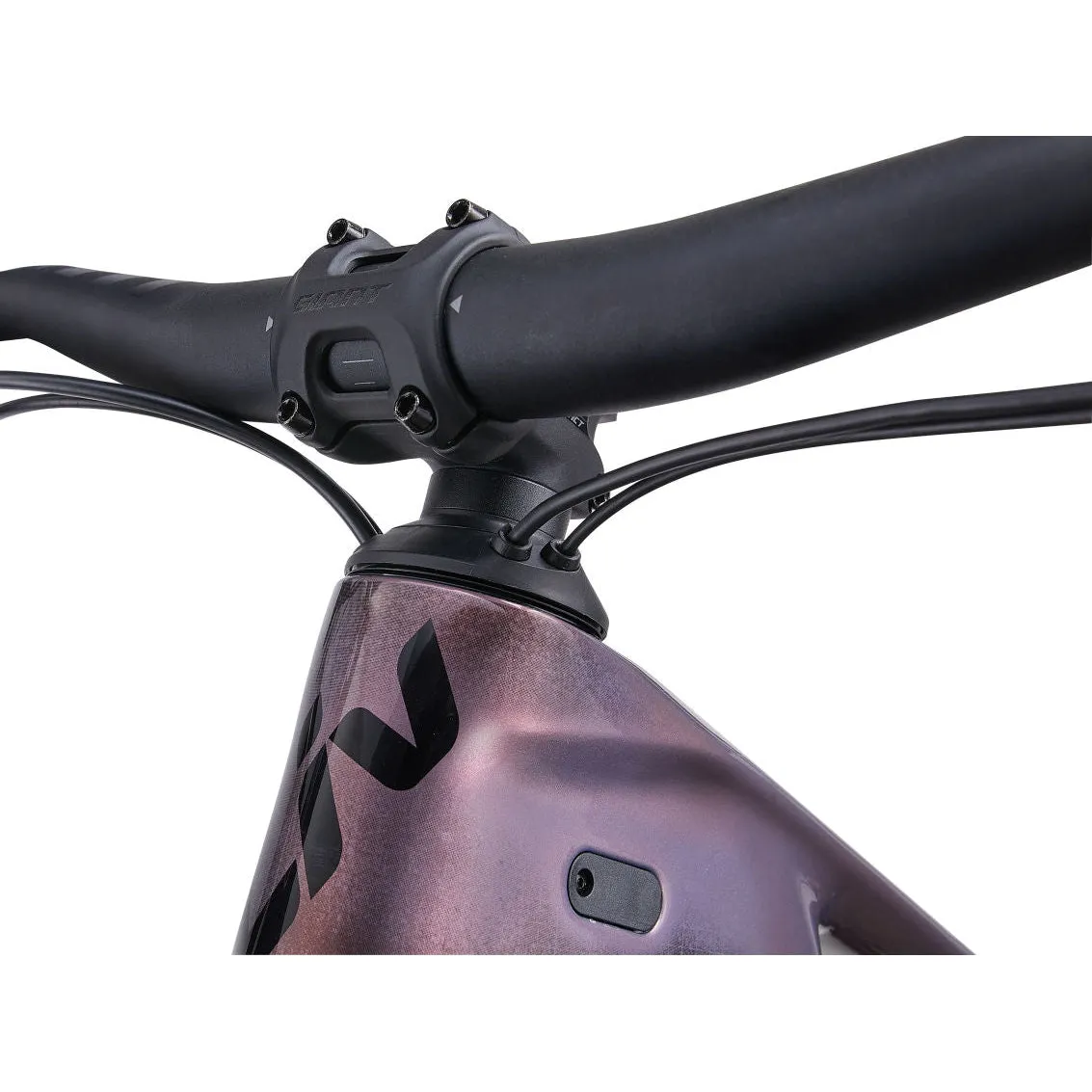

Handlebar | Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L) |
Grips | Liv Tactal Pro-E Single Lock-On Grips |
Stem | Giant Contact SL 35 |
Seatpost | Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150) |
Saddle | Liv Sylvia E |
Pedals | |
Shifters | Shimano Deore |
Front Derailleur | MRP HD2 co-moulded chain guide |
Rear Derailleur | Shimano Deore, 12-speed |
Brakes | Shimano BR-M420, 4-piston, hydraulic disc, 203mm |
Brake Levers | Shimano Deore, I-spec EV |
Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set (XS:160, S/M: 165, L:170) |
Bottom Bracket | n/a |
Rims | Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized |
Hubs | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
Weight | The most accurate way to determine any bikes weight is to have your local weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LOW|HIGH | LOW|HIGH | LOW|HIGH | LOW|HIGH | ||
| A | SEAT TUBE LENGTH(inch) | 15 | 15.7 | 16.7 | 17.7 |
| B | SEAT TUBE ANGLE | 77.2|78.0 | 77.2|78.0 | 76.0|76.7 | 76.0|76.7 |
| C | TOP TUBE LENGTH(inch) | 21.9|21.9 | 22.5|22.4 | 23.5|23.4 | 24.5|24.4 |
| D | HEAD TUBE LENGTH(inch) | 3.7 | 3.7 | 3.9 | 4.5 |
| E | HEAD TUBE ANGLE | 65.7|66.5 | 65.7|66.5 | 65.8|66.5 | 65.8|66.5 |
| F | FORK RAKE(inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL(inch) | 4.4|4.3 | 4.4|4.3 | 4.4|4.3 | 4.4|4.3 |
| H | WHEELBASE(inch) | 46.2|46.3 | 46.8|46.9 | 47.2|47.3 | 48.3|48.4 |
| I | CHAIN STAY LENGTH(inch) | 17.6|17.6 | 17.6|17.6 | 17.6|17.6 | 17.6|17.6 |
| J | BOTTOM BRACKET DROP(inch) | 1.2|0.8 | 1.2|0.8 | 1.2|0.8 | 1.2|0.8 |
| K | STACK(inch) | 23.9|23.7 | 23.9|23.7 | 24.1|23.8 | 24.6|24.4 |
| L | REACH(inch) | 16.5|16.8 | 17.1|17.4 | 17.5|17.8 | 18.3|18.6 |
| M | STAND OVER HEIGHT(inch) | 28.4|28.7 | 28.6|28.9 | 28.2|28.6 | 28|28.5 |
| N | HANDLEBAR WIDTH(inch) | 29.9 | 29.9 | 31.5 | 31.5 |
| O | STEM LENGTH(inch) | 1.6 | 1.6 | 1.6 | 2 |
| P | CRANK LENGTH(inch) | 6.3 | 6.3 | 6.5 | 6.5 |
| Q | WHEEL SIZE | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" |
