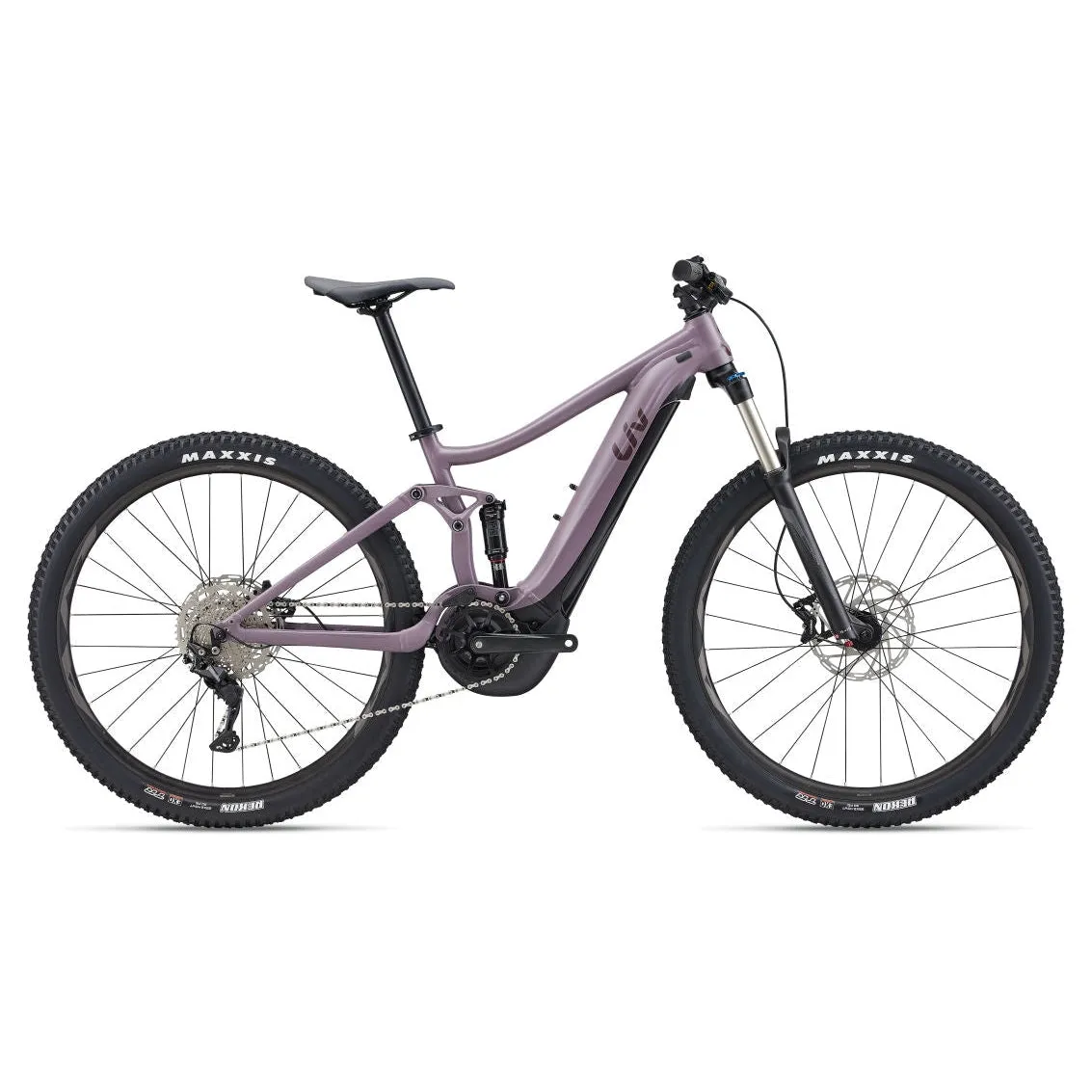

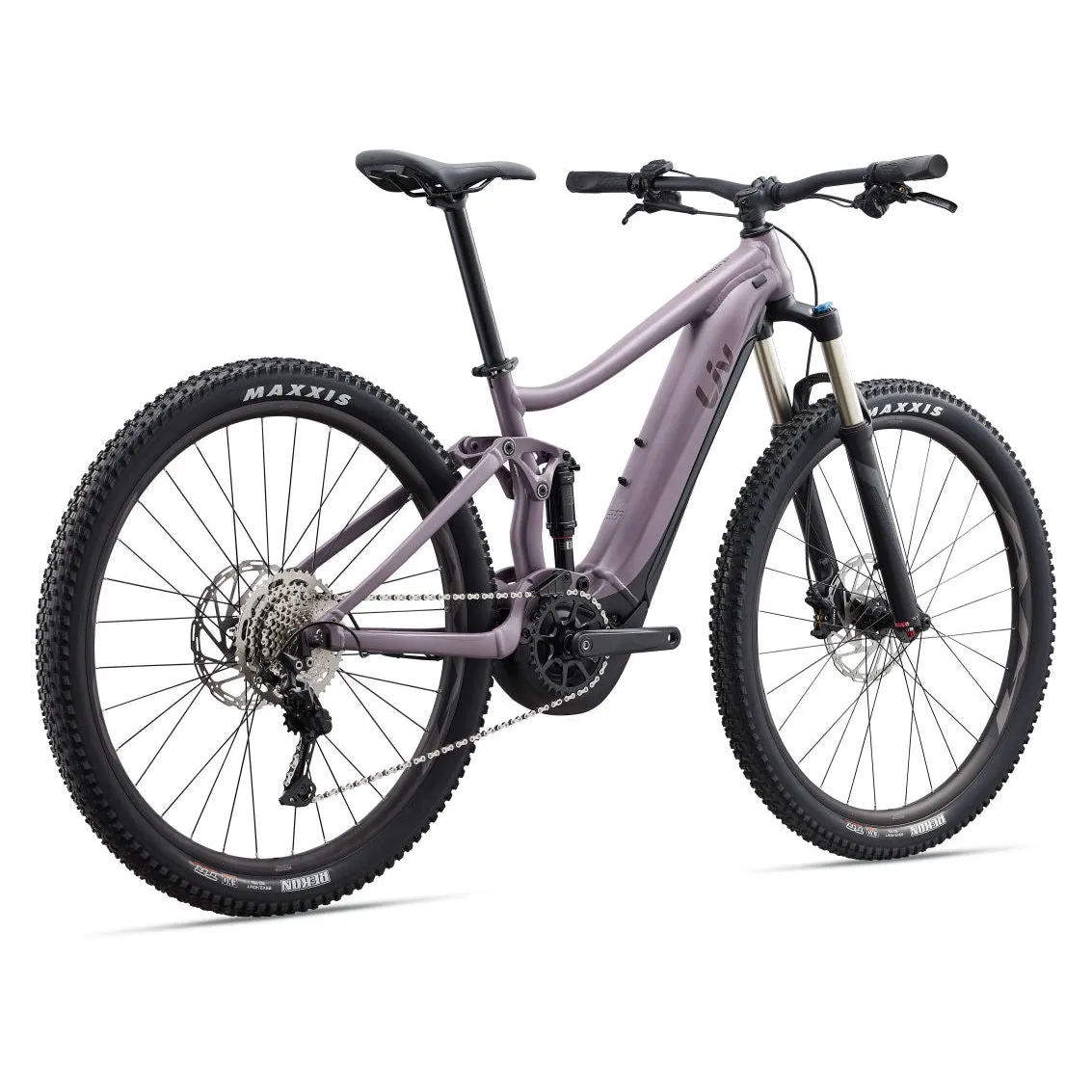

Looking for an adventure that will leave you breathless? Look no further than the Embolden E 2 29er 20MPH Full Suspension Mountain E-Bike!
This baby has the pep in its step to get you revved up and ready to tackle any trail. With its spirited power and full suspension, you'll be saying "yes!" to every turn and pushing yourself farther and faster than ever before.
This bike is like having a trusty sidekick that's always ready to go on a wild ride with you. It's the ultimate blend of power and performance, giving you the boost you need to conquer any terrain. So buckle up, grab your helmet, and get ready for a ride that will leave you grinning from ear to ear!
Accessible Performance

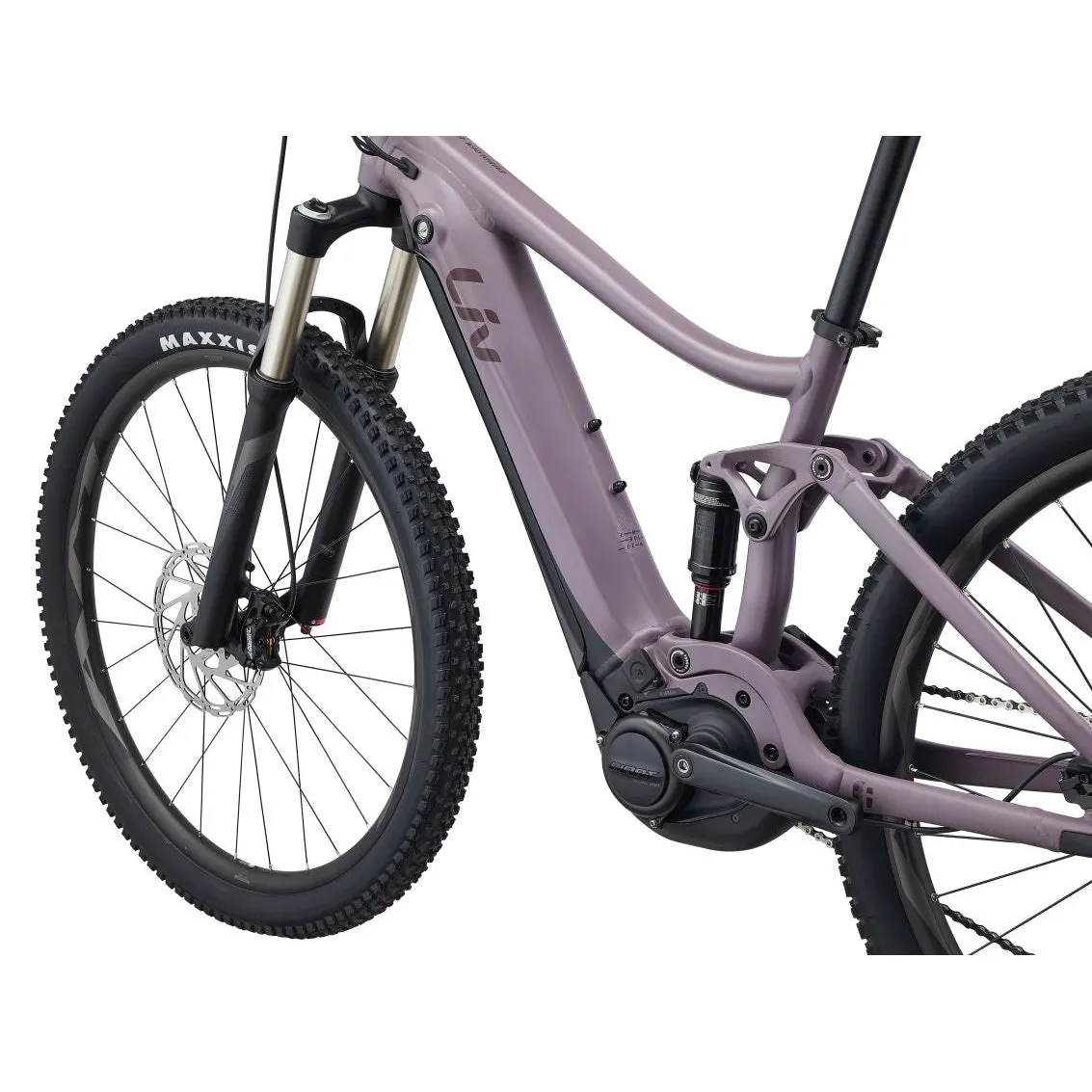

A SyncDrive Sport motor, new fully integrated EnergyPak Smart 625Whr or 500Whr battery, handlebar-mounted RideControl Dash and Smart Assist Technology let you ride farther, faster and more efficiently.
Agile and Functional

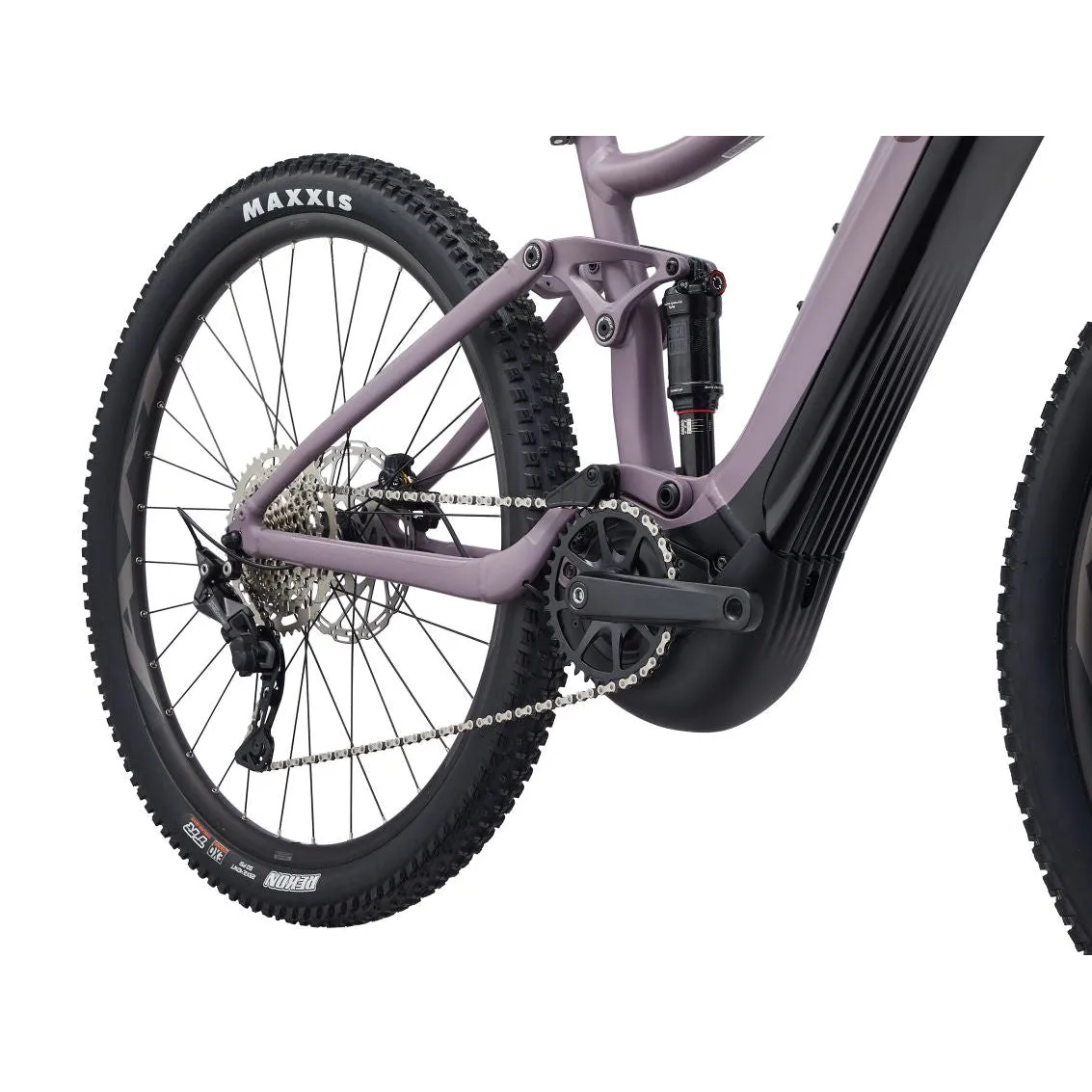

The 130 mm front / 120 mm rear suspension platform creates a playful ride, along with kickstand and rack compatibility making for an all-around backcountry adventure machine.
Built for You
Livs women first design philosophy and suspension tuned for female riders provide a confidence-inspiring, predictable and maneuverable ride.
RANGE
How far can I expect to ride on a single battery charge?
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK SMART 500 / SYNCDRIVE SPORT
Range
- Extreme: 34 miles
- Good: 68 miles
- Ideal: 111 miles
Specifications
Motor | SyncDrive Sport, 70Nm, Powered by Yamaha |
Controller | RideControl One ANT |
Display | ANT Wireless display compatible |
Battery | EnergyPak Smart 500Wh, 36V Integrated Lithium-Ion |
Charger | EnergyPak 4A smart charger compact |
Sizes | XS, S, M, L, (XS: 27.5 / S-L: 29) |
Colors | Purple Ash/Black |
Frame | ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount |

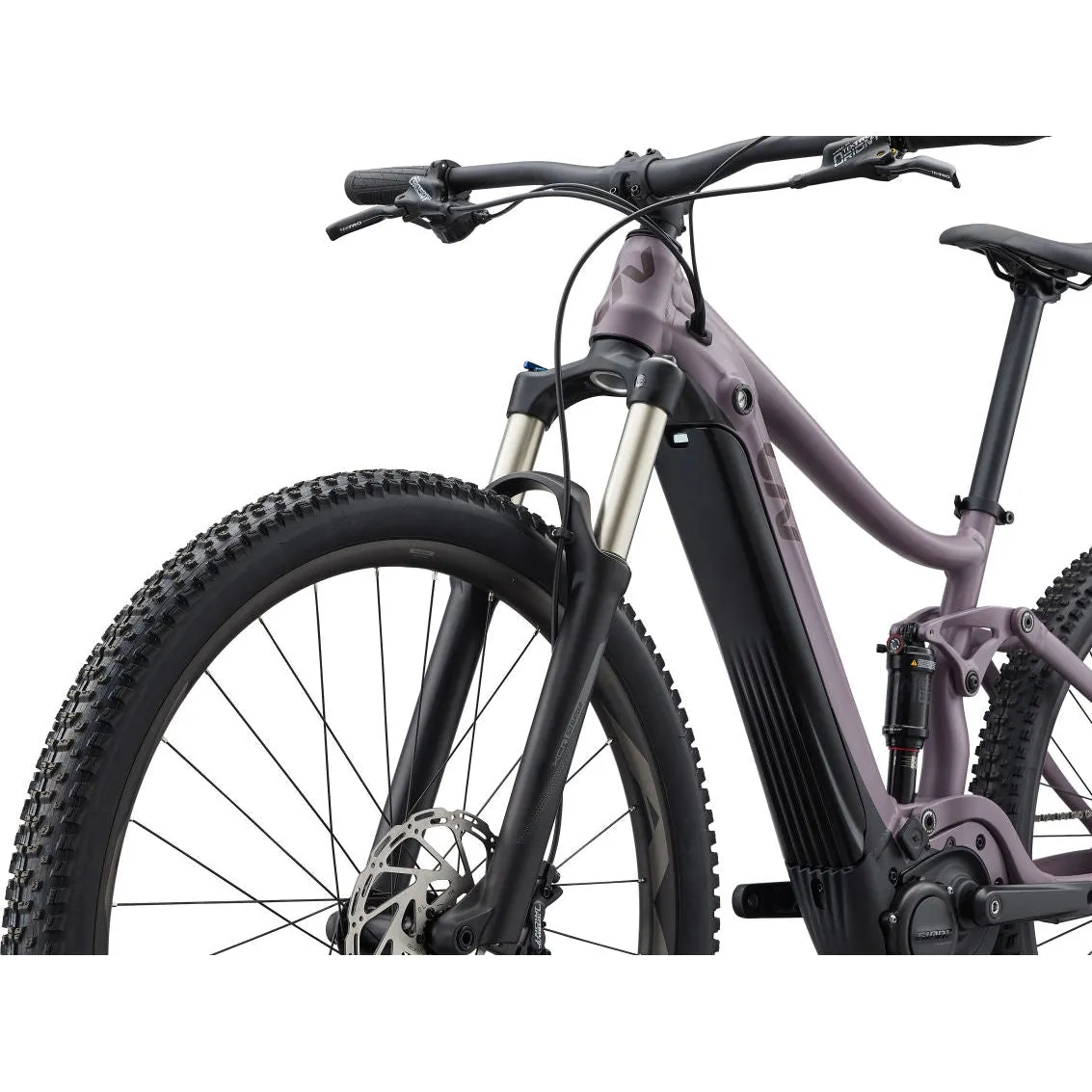

Fork | SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle |
Shock | RockShox Monarch R, High Volume, 184x44mm, custom tuned |
Handlebar | Giant Connect TR Riser 31.8x750~780mm (XS-S: 750 / M-L: 780) |
Grips | Liv Contact Microtech Plus, Lock-on |
Stem | Giant Contact |
Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
Saddle | Liv Sylvia E |
Pedals | Aluminum Platform |
Shifters | Shimano Deore |
Front Derailleur | MRP 1X CS custom |
Rear Derailleur | Shimano Deore, 10-speed, Shadow |
Brakes | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
Brake Levers | Tektro HD-M745 Orion |
Cassette | Shimano CS-M4100-10, 11-46T, 10-speed |
Chain | KMC e.10 Sport, e-bike optimized |
Crankset | Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (XS/S:160, M/L:165) |
Bottom Bracket | - |
Rims | Giant AM 27.5" / 29", Tubeless ready, 30mm inner width (XS: 27.5 / S-L: 29) |
Hubs | Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR |
Spokes | Stainless Steel |
Tires | Maxxis Rekon 29x2.4"/ 27.5x2.4" foldable, 60tpi, EXO, Tubeless Ready (XS: 27.5, S-L: 29) |
Extras | - |
Lighting | - |
Lock | - |
Carrier | - |
Weight | The most accurate way to determine any bikes weight is to have your local weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH(inch) | 15 | 16 | 17.5 | 19.3 |
| B | SEAT TUBE ANGLE | 74.0 | 74.0 | 74.0 | 74.0 |
| C | TOP TUBE LENGTH(inch) | 22.2 | 22.8 | 23.4 | 24 |
| D | HEAD TUBE LENGTH(inch) | 3.9 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 67.5 | 67.5 | 67.5 | 67.5 |
| F | FORK RAKE(inch) | 1.8 | 1.8 | 1.8 | 1.8 |
| G | TRAIL(inch) | 4.1 | 4.1 | 4.1 | 4.1 |
| H | WHEELBASE(inch) | 45.6 | 46.1 | 46.8 | 47.4 |
| I | CHAIN STAY LENGTH(inch) | 18.7 | 18.7 | 18.7 | 18.7 |
| J | BOTTOM BRACKET DROP(inch) | 0.8 | 0.8 | 0.8 | 0.8 |
| K | STACK(inch) | 23.4 | 23.4 | 23.7 | 24.1 |
| L | REACH(inch) | 15.6 | 16.1 | 16.6 | 17.1 |
| M | STAND OVER HEIGHT(inch) | 28 | 29.1 | 30.1 | 30.9 |
| N | HANDLEBAR WIDTH(inch) | 29.5 | 29.5 | 30.7 | 30.7 |
| O | STEM LENGTH(inch) | 1.6 | 1.6 | 2 | 2.4 |
| P | CRANK LENGTH(inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | WHEEL SIZE | 27.5 | 29" | 29" | 29" |
